1 Duplex 15A Power Plastic Floor Box with Flip Lids – Dark Bronze
Original price was: $92.00.$59.80Current price is: $59.80.
1 Duplex 15A Power Plastic Floor Box with Flip Lids – Dark Bronze

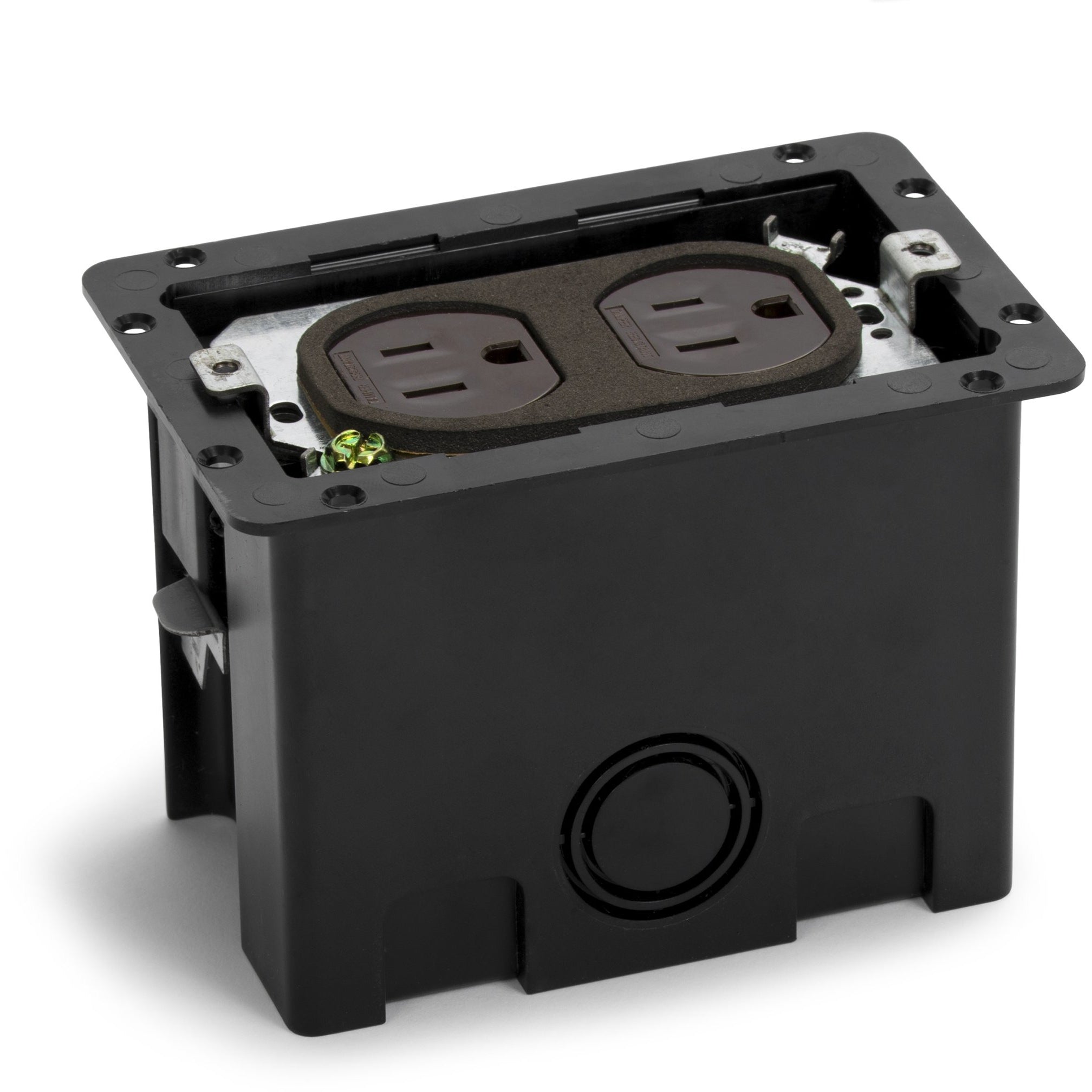

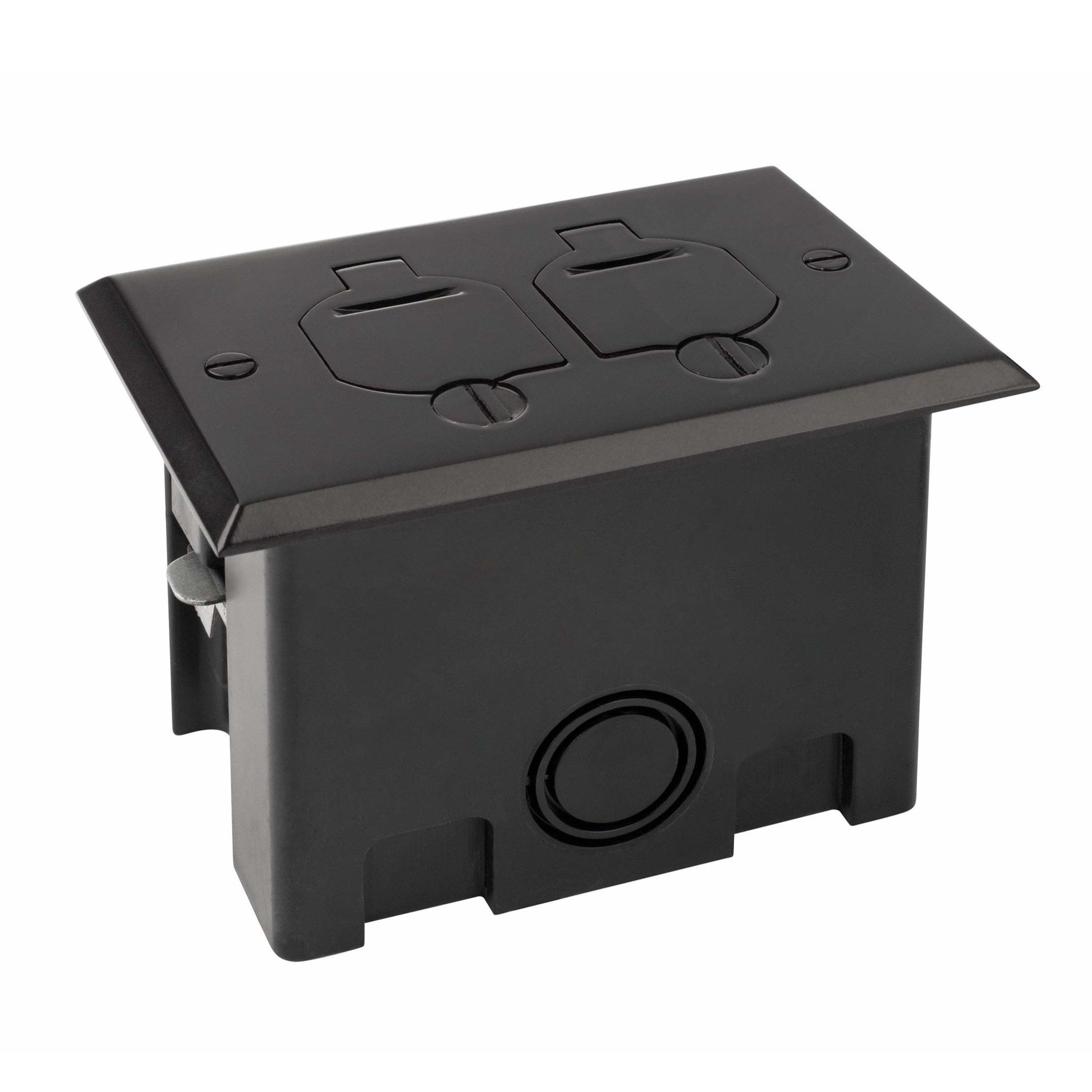

The Lew Electric PB1-FPDB is a plastic floor box with metal dark bronze cover.  Inside the box you will find one 15 amp duplex power receptacle with tamper proof plugs. The cover features 2 flip lids that provide quick access to your plugs in the box. The box that houses the receptacles is made out of a lightweight polymer construction that offers huge savings over traditional metal floor boxes. The box is easy to install and the adjustable wing clamp adds additional installation support when installed, there are 4 knockouts in the box to run your wire. The floor box is ETL listed for the USA and cETL listed for Canada installations, it also conforms to UL code 514C.
The compact floor box is affordable, easy to install, and supplies power in any finished floor.Â
Specifications:

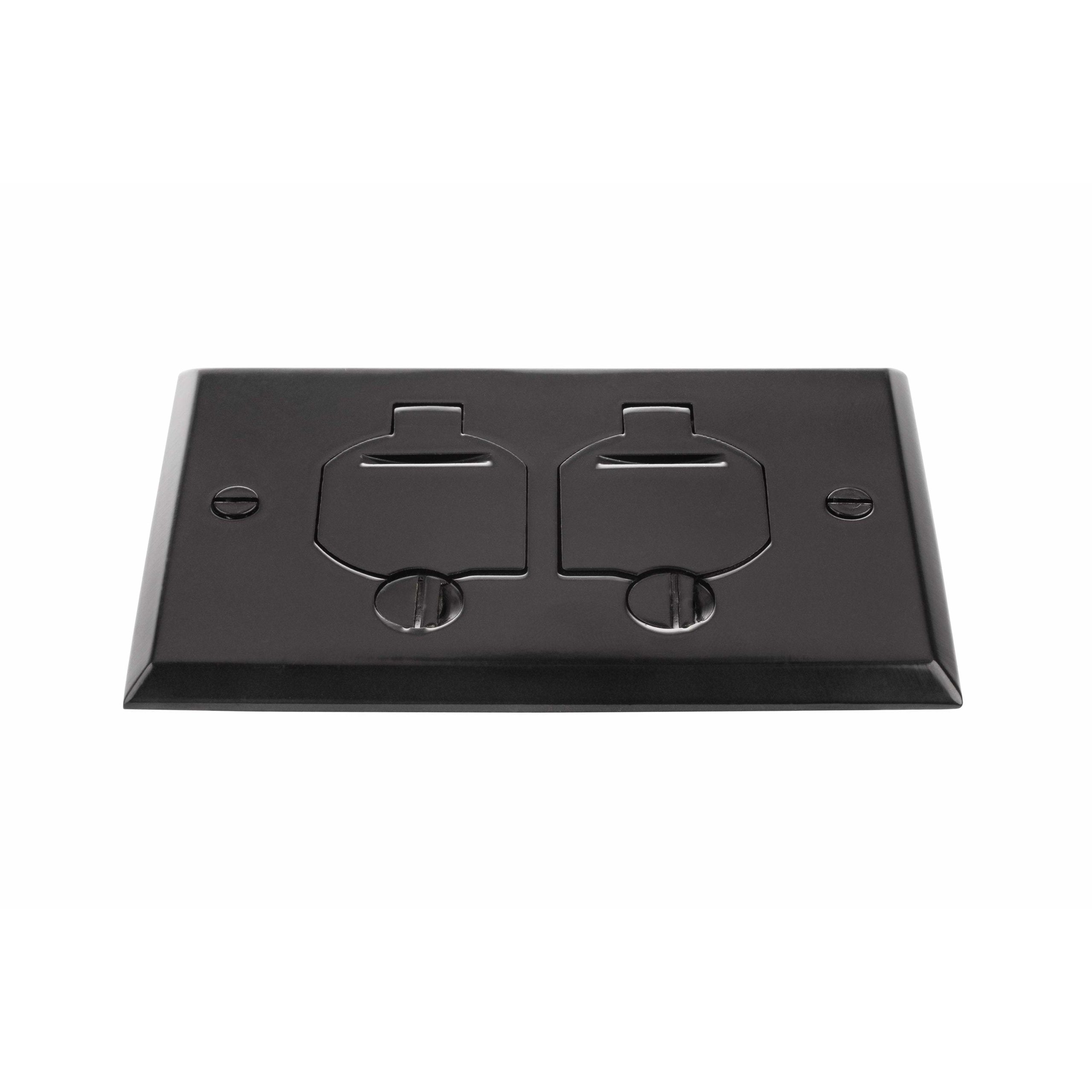

- Cover: Dark bronze, 2 flip lids
- Outlets: Â One duplex 15A
- Size: 1 gang
- Tamper resistant plugs
- ETL listed for USA
- cETL listed for Canada
- ETL listing # 4004534
- Conforms to UL514C
- Interior capacity: Â 22.5 cubic inches
- Cover dimensions: Â 5 1/8″ x 3 1/2″
- Cutout dimensions: Â 2 9/16″ x 4 5/16″Â
- Depth: Â 3 5/8″
- Box material: Polymer
- For indoor installations only
- Wing screws secure box to sub floor
- Plate and outlet screws provided
- Warranty: Â 1 year
SpecificationsÂ
Cover: Dark bronze, 2 flip lids
Outlets: Â One duplex 15A
Tamper resistant plugs
ETL listed for USA
cETL listed for Canada
ETL listing # 4004534
Conforms to UL514C
Interior capacity: Â 22.5 cubic inches
Cover dimensions: Â 5 1/8″ x 3 1/2″
Cutout dimensions: Â 2 9/16″ x 4 5/16″Â
Depth: Â 3 5/8″
Box material: Polymer
Warranty: Â 1 year
Downloads
Lew Electric PB1-FPDB Drawing (PDF)
Lew Electric PB1-FPDB Installation Instructions (PDF)
