1 Duplex 15A Power Plastic Floor Box with Screw Plugs – Brass Cover

Original price was: $65.00.Current price is: $42.25.

1 Duplex 15A Power Plastic Floor Box with Screw Plugs – Brass Cover

SKU: P737332 Category:
Description

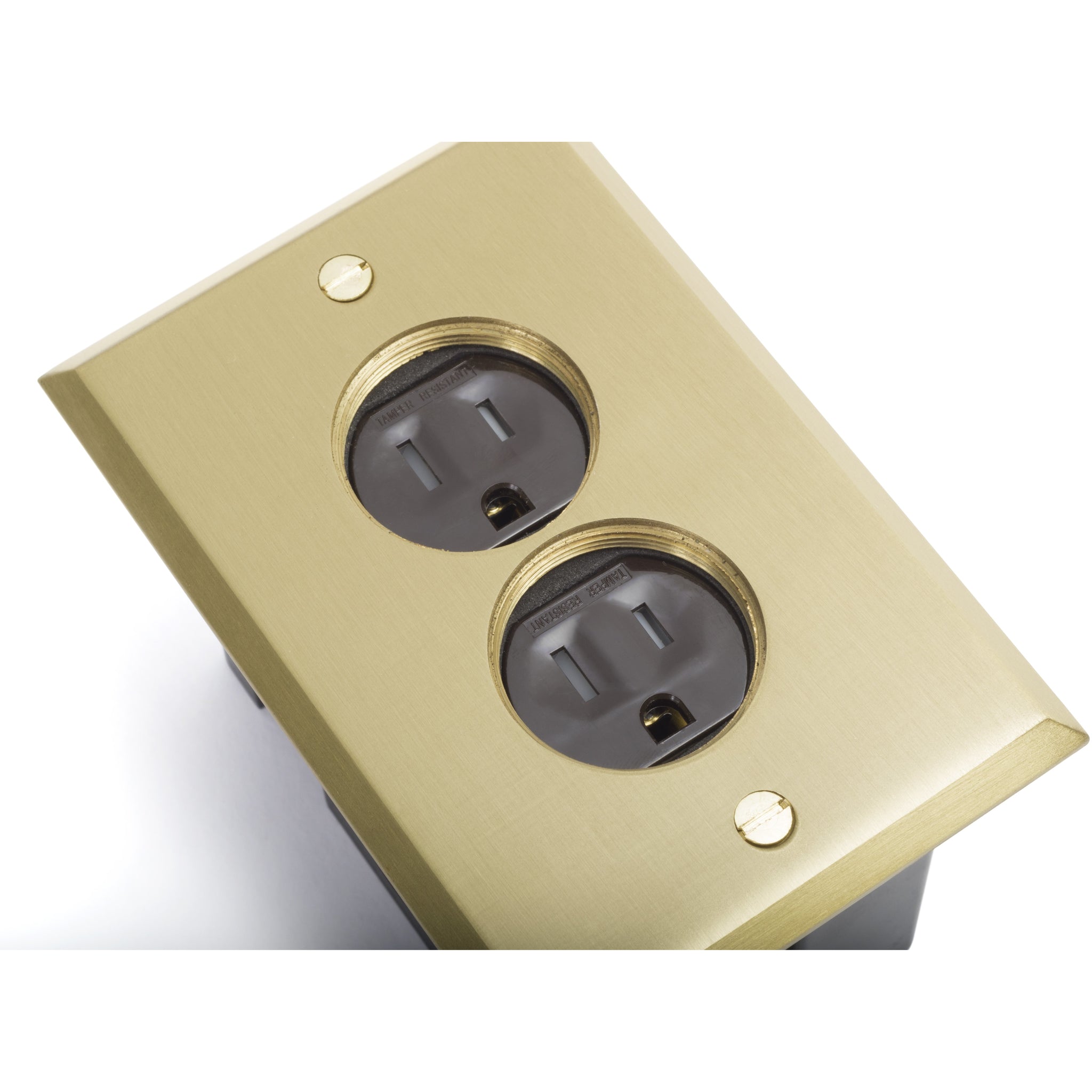

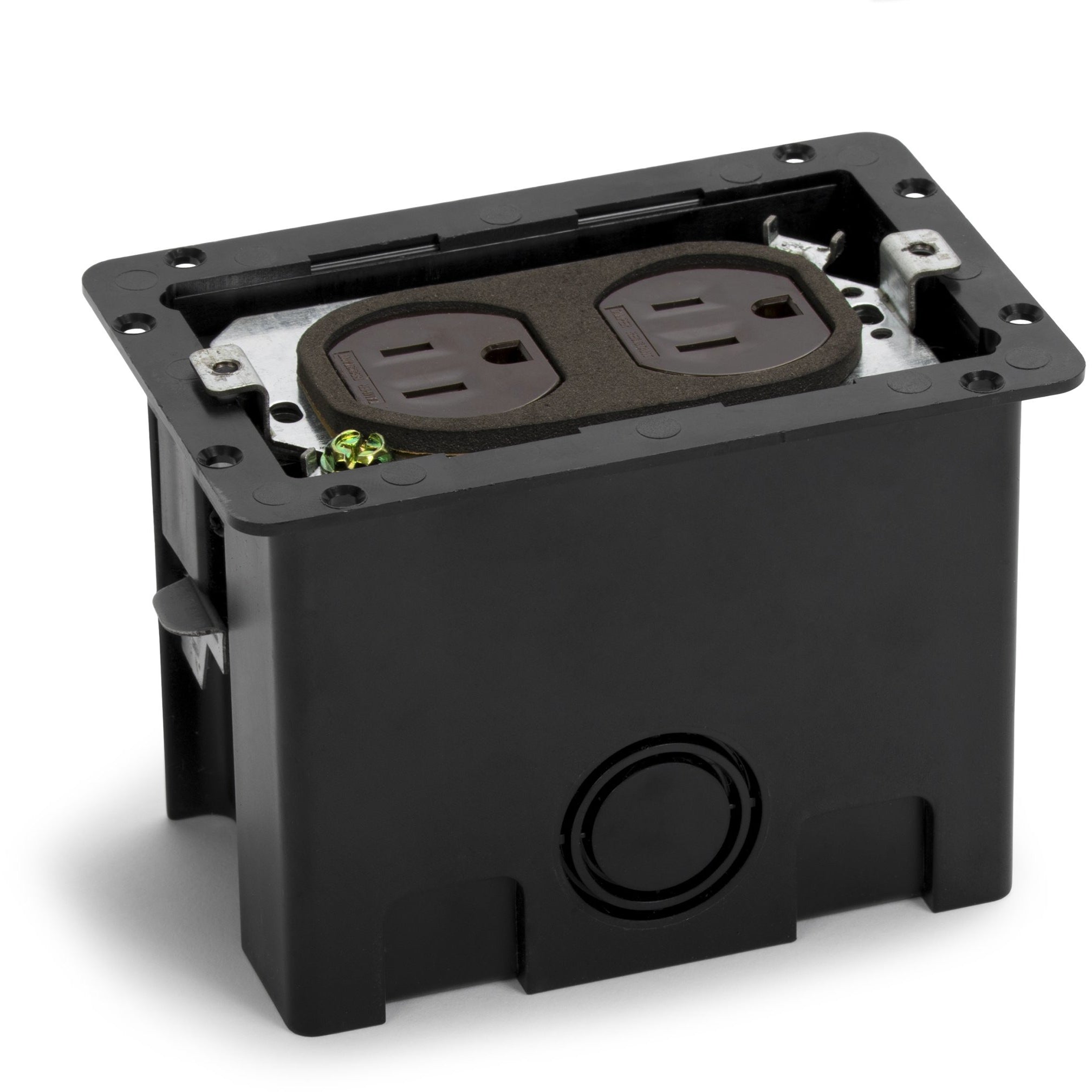

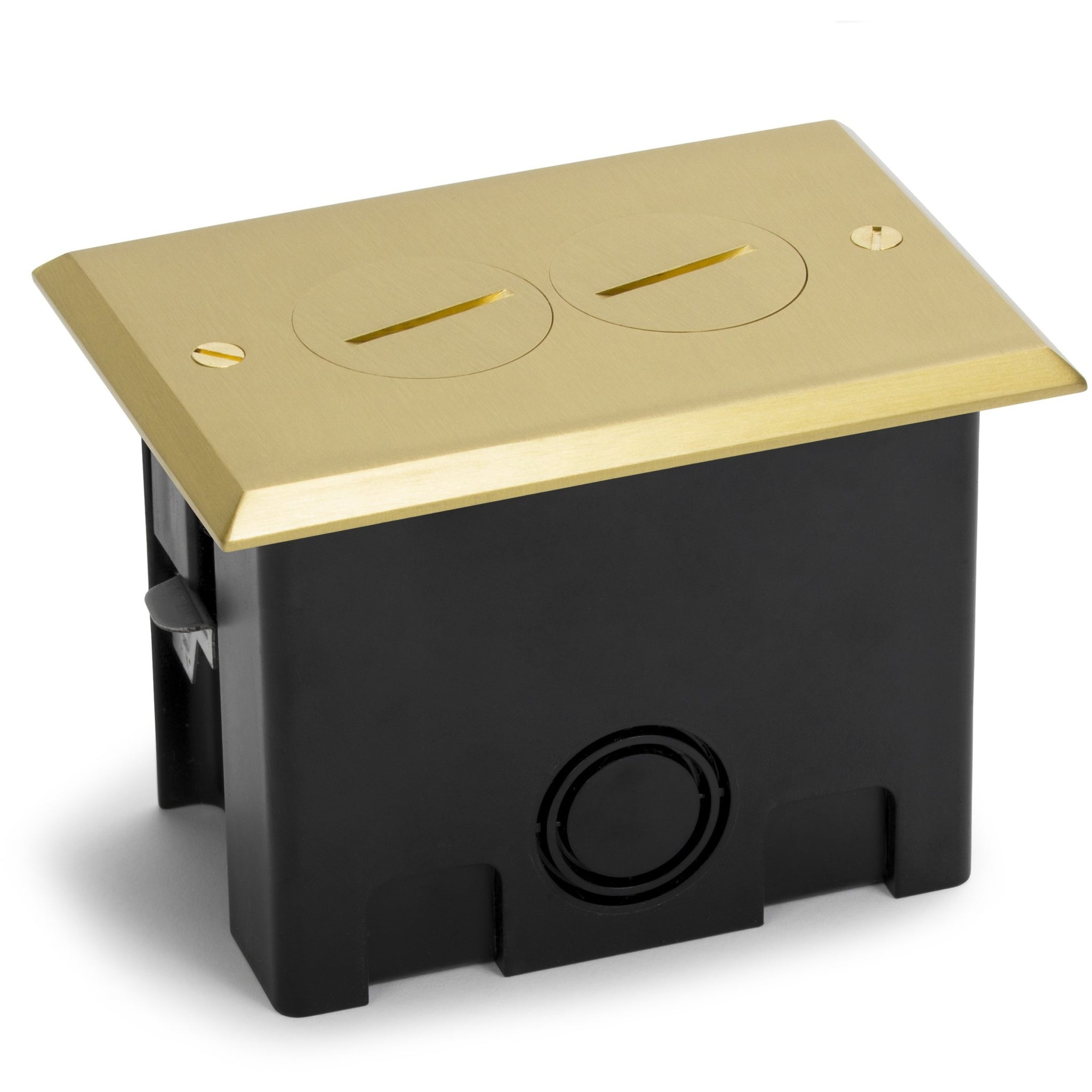

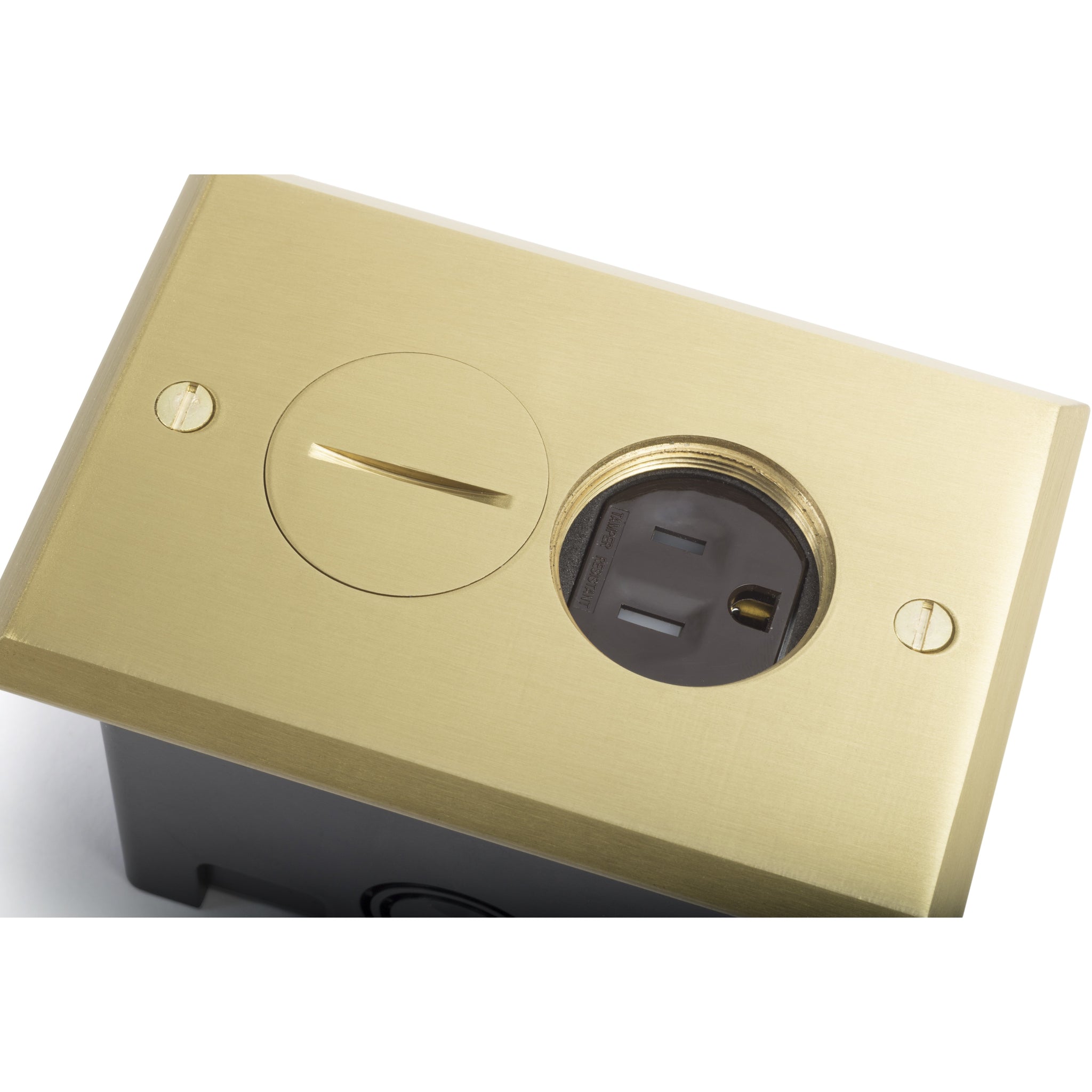

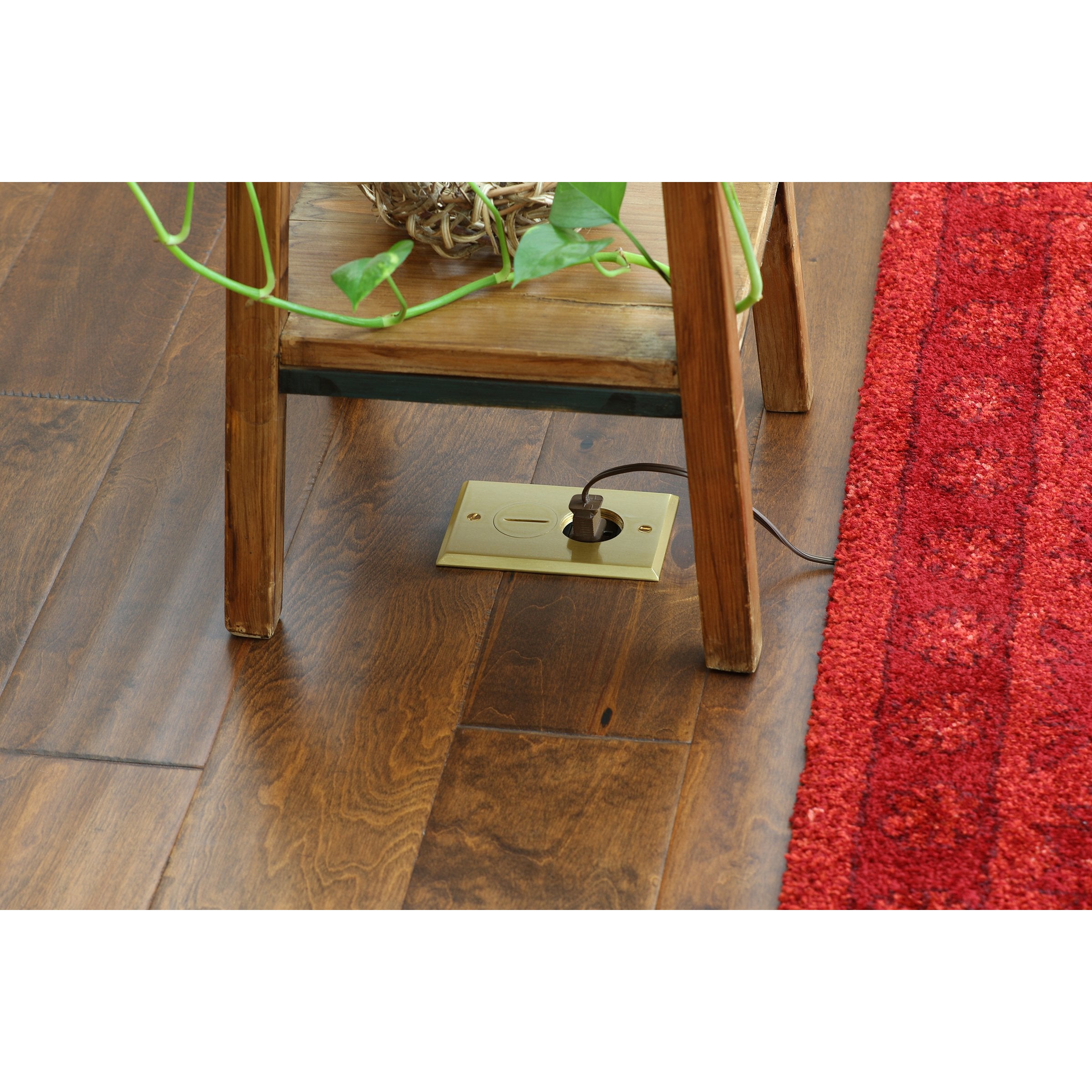

The Lew Electric PB1-SPB is a plastic floor box with brass cover.  Inside the box you will find one 15 amp duplex power receptacle with tamper proof plugs. The cover features 2 screw plugs that provide quick access to your outlets in the box. The box that houses the receptacles is made out of a lightweight polymer construction that offers huge savings over traditional metal floor boxes. The box is easy to install and the adjustable wing clamp adds additional installation support when installed, there are 4 knockouts in the box to run your wire. The floor box is ETL listed for the USA and cETL listed for Canada installations, it also conforms to UL code 514C.

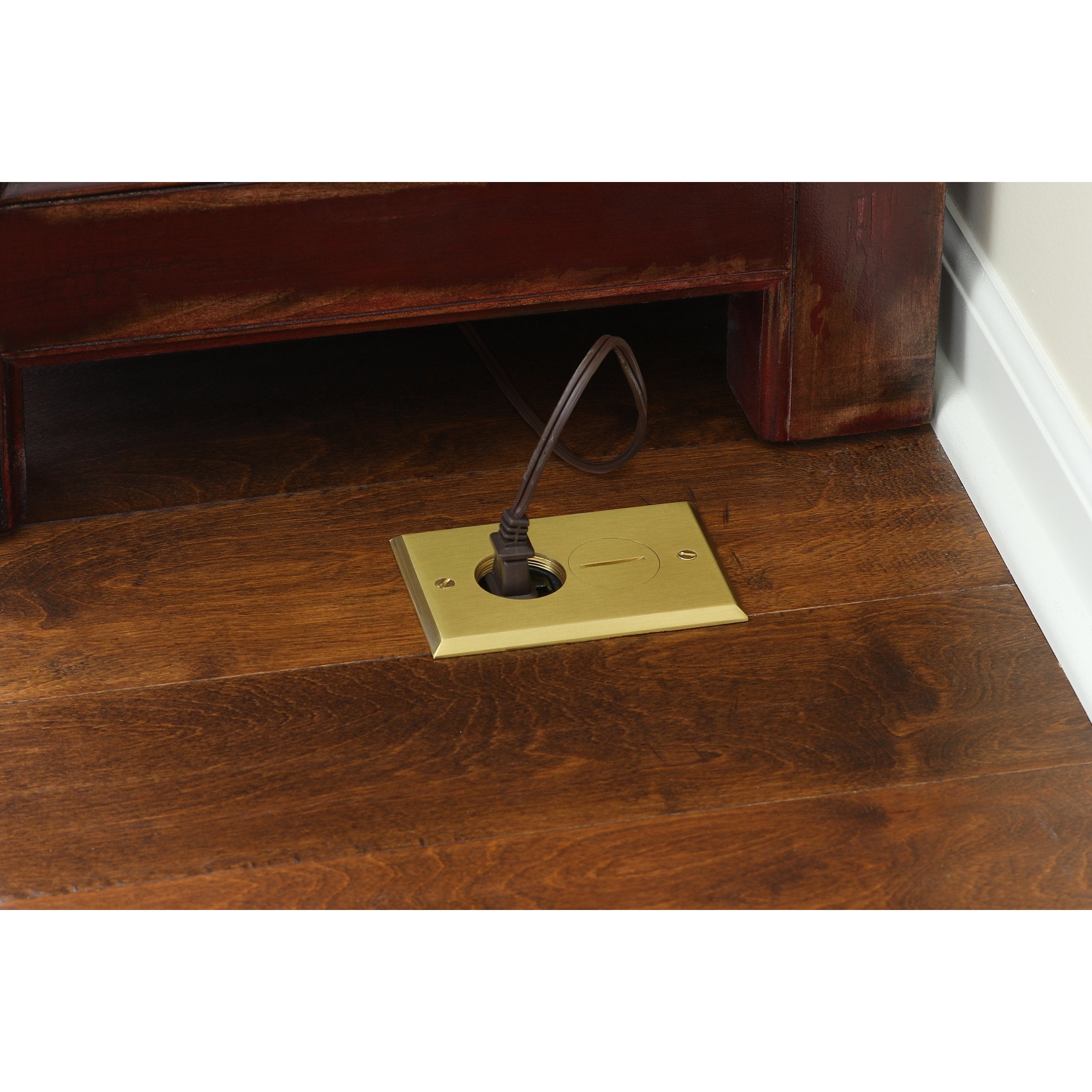

The compact floor box is affordable, easy to install, and supplies power in any finished floor.

Specifications:

  • Cover: Brass, 2 screw plugs
  • Outlets:  One duplex 15A
  • Size: Single gang
  • Tamper resistant plugs
  • ETL listed for USA
  • cETL listed for Canada
  • ETL listing # 4004534
  • Conforms to UL514C
  • Interior capacity:  22.5 cubic inches
  • Cover dimensions:  5 1/8″ x 3 1/2″
  • Cutout dimensions:  2 9/16″ x 4 5/16″
  • Depth:  3 5/8″
  • Box material: Polymer
  • For indoor installations only
  • Wing screws secure box to sub floor
  • Plate and outlet screws provided
  • Warranty:  1 year

Lew Electric PB1-SPB Installation Instructions (PDF)


Specifications

Cover: Brass, 2 screw plugs
Outlets:  One duplex 15A
Tamper resistant plugs
ETL listed for USA
cETL listed for Canada
ETL listing # 4004534
Conforms to UL514C
Interior capacity:  22.5 cubic inches
Cover dimensions:  5 1/8″ x 3 1/2″
Cutout dimensions:  2 9/16″ x 4 5/16″
Depth:  3 5/8″
Box material: Polymer
Warranty:  1 year

Downloads

Lew Electric PB1-SPB Drawing (PDF)

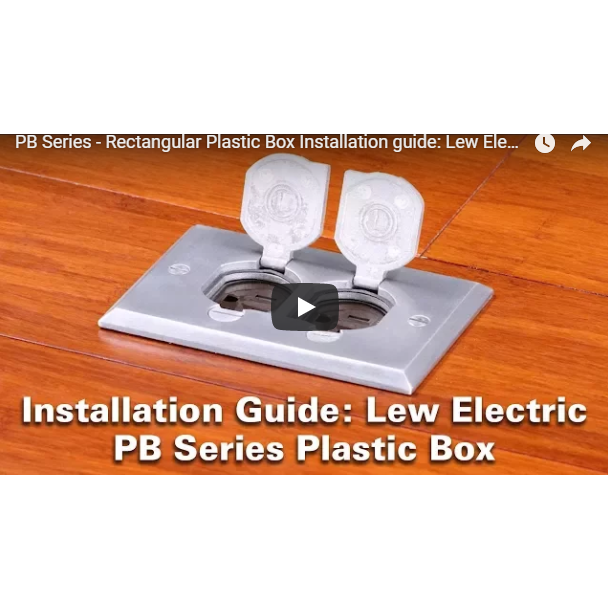

Lew Electric PB1-SPB Installation Instructions (PDF)
