Single Gang Shallow Concrete Floor Box, Semi-Adjustable, Brass
Original price was: $139.00.$90.35Current price is: $90.35.
Single Gang Shallow Concrete Floor Box, Semi-Adjustable, Brass

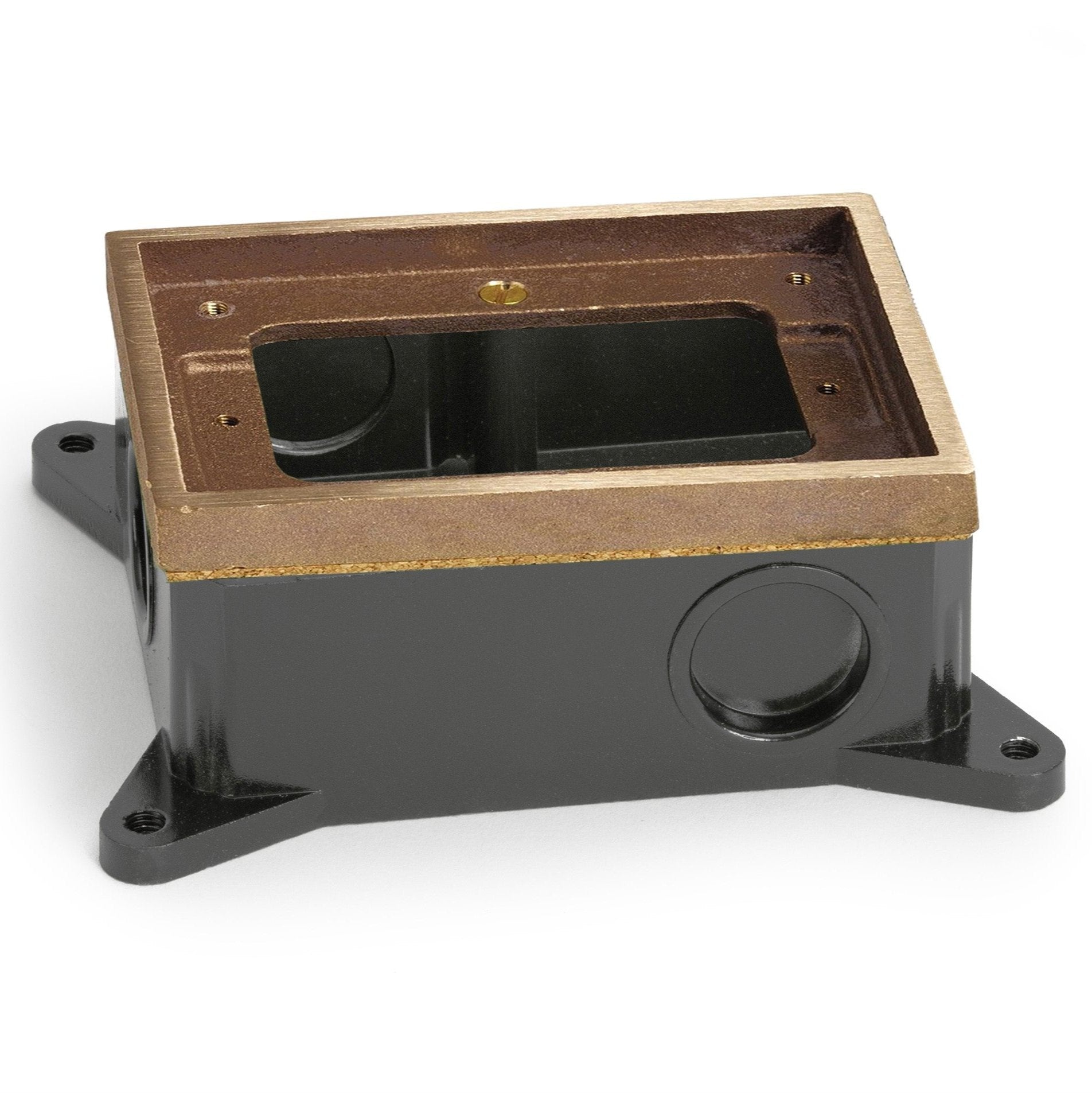

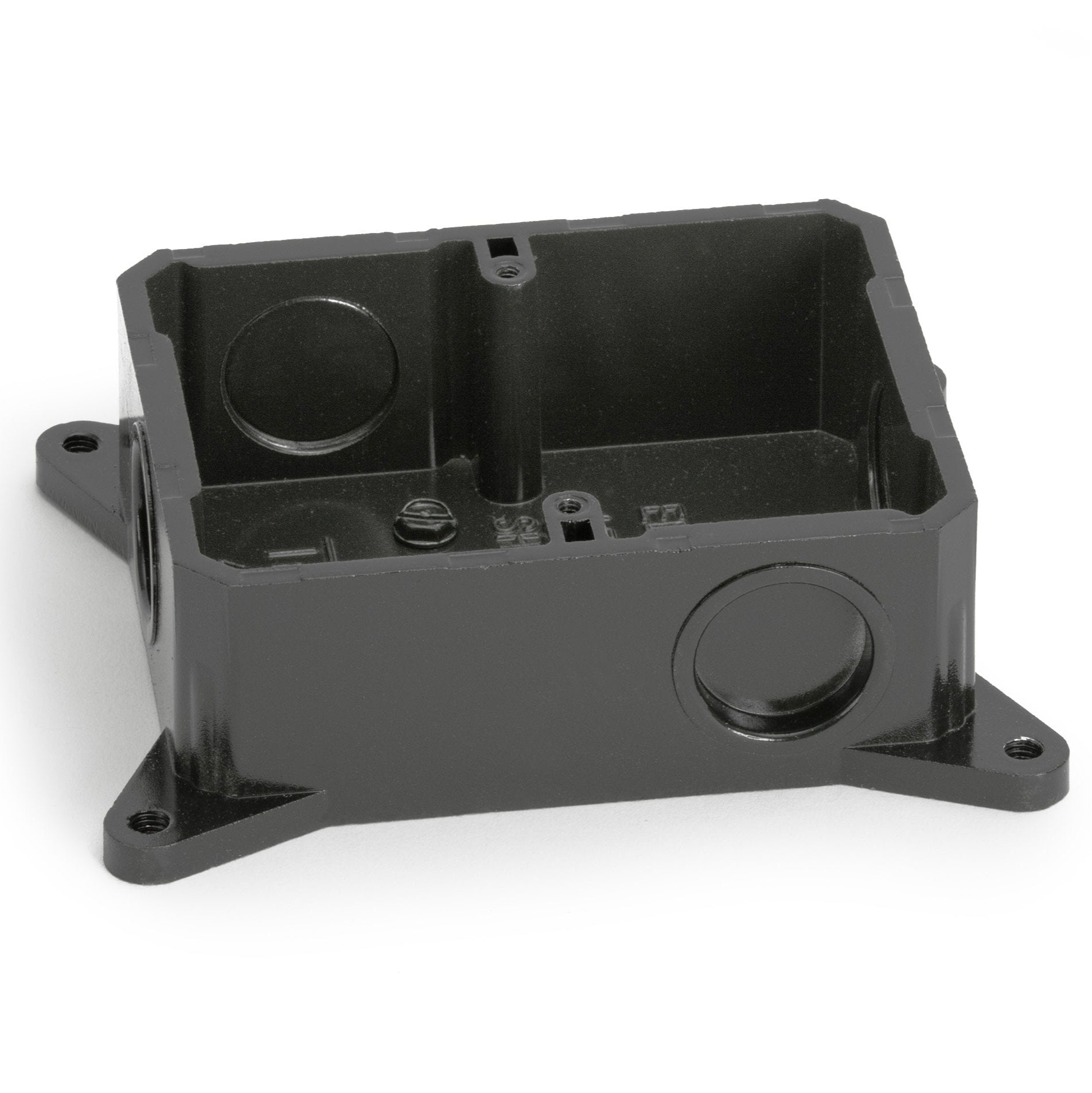

The Lew Electric SH-1101-DA-TF is a die-cast aluminum single gang rectangular concrete floor box with brass tile flange. The box offers 1″ of adjustability before it is installed, the box cannot be adjusted after installation. The box is shallow making it perfect for concrete installations of 2 3/16″ to 3 3/8″ in depth. There is a 3/4″ knockout on each side of the box to run your wires to, for a total of 4 knockouts. The box ships with a protective cement cover to keep the box clean and safe during concrete pouring.Â
To further make installation as easy as possible, screws are provided to mount the cover assembly to the box. The box is UL listed for the USA, and cUL listed for Canada installations.
Material: Die-cast aluminum
Includes brass tile flange
Size: Single gang
For concrete installations of 2 3/16″ to 3 3/8″ depth
1″ of adjustability before installation
16 cubic inches of interior space
3/4″ knockouts on each side
ETL listed, # 514A
CSA approved, # C22.2 #18.1
ETL file number 4004534
Includes construction cap
Includes cover screws to secure to box
Box dimensions:Â 4.25″ x 3.88″
Box depth:Â 2.10″ deep
Can be used with carpet or tile
Warranty: Â 1 year
Lew Electric SH-1101-DA-TF Drawing (PDF)
Lew Electric SH-1101-DA-TF Installation Instructions (PDF)
SpecificationsÂ
Material: Die-cast aluminum
Includes brass tile flange
Size: Single gang
For concrete installations of 2 3/16″ to 3 3/8″ depth
1″ of adjustability before installation
16 cubic inches of interior space
3/4″ knockouts on each side
ETL listed, # 514A
CSA approved, # C22.2 #18.1
ETL file number 4004534
Includes construction cap
Includes cover screws to secure to box
Box dimensions:Â 4.25″ x 3.88″
Box depth:Â 2.10″ deep
Can be used with carpet or tile
Warranty: Â 1 year
Downloads
Lew Electric SH-1101-DA-TF Drawing (PDF)
Lew Electric SH-1101-DA-TF Installation Instructions (PDF)
